The Pertronic Remote Vibrating Alarm System aims to alert and wake sleeping occupants in the event of a fire alarm. The system is especially suited for deaf or hearing impaired occupants who may not respond to normal audible alarms.

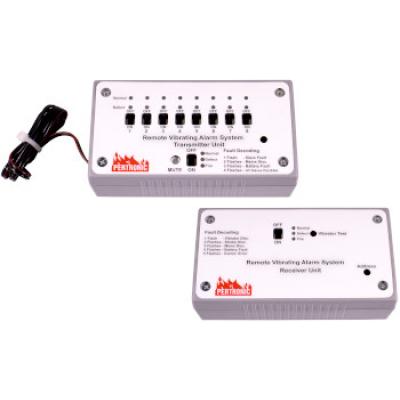

The system consists of a Transmitter Unit providing wireless control of up to eight Receiver Units. Each Receiver Unit controls a vibrating bed-shaker positioned under the pillow or mattress. The Receiver Unit also provides an output for a visual alarm device, such as a strobe.

In the event of a system fault the system provides audible and visual alerts.

One Pertronic fire panel can drive multiple Vibrating Alarm Transmitter Units.

Features

• Compatible with all current Pertronic fire panels
• Wireless communication
• Up to eight Receiver Units per system
• Receiver Units easily added to or removed from an existing system
• Wireless range: > 50 metres unobstructed, dependent on building structure
• Small, robust case design suitable to be placed under or beside a bed
• Easy to operate user interface
• System status is monitored by the fire panel, raising a defect if the system fails
• Receiver Unit has ON/OFF switch and strobe drive output for optional external strobe
• Automatic and Manual Test button for checking bed shaker operation

---
