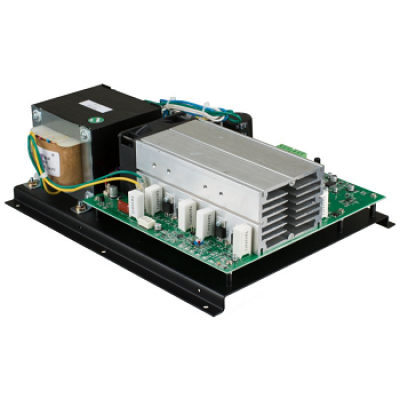

This amplifier is designed for use in emergency evacuation systems. It is powered by an external 24Vdc (nominal) power source.

The amplifier accepts line level audio inputs and produces a 100V line output via a transformer.

Features

• Line level input is provided using the Pertronic EVAC Generator to generate Alert tones, Evacuation tones and voice messages as specified by NZS 4512
• Capable of driving up to 120 Watt (EVAC120W24V) or 250 Watt (EVAC250W24V) in to connected 100 Vrms public address loud-speakers
• The 100 Vrms output line has short circuit, overload and thermal cut-out protection
• Bolt-in steel chassis construction enables direct mounting in Pertronic fire alarm control panels or ancillary cabinets
• Amplifier status (Normal, Fault and Activation) is monitored by the fire alarm panel’s EVAC generator

---
