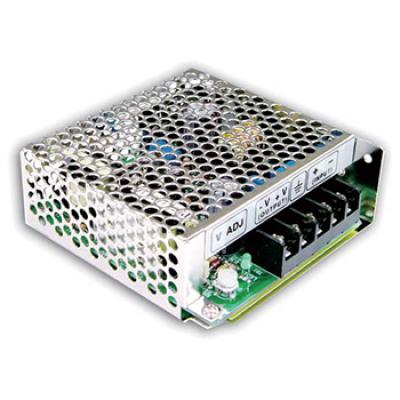

DC to DC Converter 24V I/P to 12V O/P @ 2.1A
SD-25B-12 Converter
Datasheet
Installation Note
The SD-25B-12 is a 24 Volt (nominal) to 12 Volt 2.1 Amp (output) DC-to-DC converter.
Features
- Output voltage adjustable: 11 Vdc - 16 Vdc
- Maximum output current: 2.1 Amp
- Input voltage range: 19 Vdc - 36 Vdc
- Protection: Short circuit / Overload / Over voltage
- 1500 Vac input - output isolation
- Built-in EMI filter, low ripple noise
Ordering Information
Product Code
Description
Product Code: SD-25B-12
Description: DC to DC Converter 24V I/P to 12V O/P @2.1A
