Pertronic FireMap® is an economical fire system management tool that adds advanced features to any fire detection and alarm system.

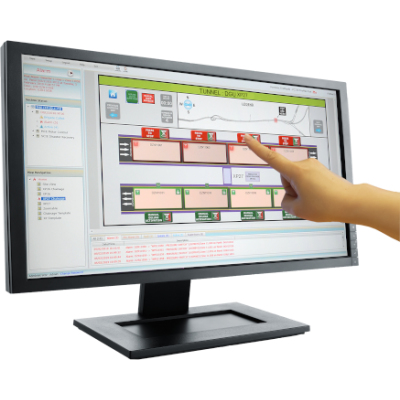

FireMap provides remote monitoring and graphic-based touch-screen control of Pertronic analogue addressable fire systems. FireMap can also control and monitor other equipment, including non-Pertronic fire alarm systems and building management system equipment, when appropriately configured.
Whenever a monitored fire system originates an alarm:

• FireMap sounds an audible warning and automatically displays a map of the area that triggered the alarm signal, with the zone containing the alarm signal highlighted in red
• FireMap’s status window displays the word “Alarm” and details of the location
• Fire alarm control panels with active alarms are highlighted in red on the FireMap display
• In Pertronic analogue addressable fire systems, FireMap’s smart icons map the active devices in red

FireMap’s information storage and retrieval capabilities provide quick and easy access to additional information, including contact information for key personnel, response procedures, and photographs. In Pertronic analogue addressable systems, authorised FireMap users are able to acknowledge alarms, reset
devices from alarm mode, and isolate or enable devices or zones directly from any FireMap workstation.
In suitably-configured Pertronic F220/Net2 systems, FireMap provides full control of fire system functions.
To update installed versions of FireMap, the latest configuration should be imported from the connected Net2Card.

Features

• Connects with single or multiple individual fire panels and fire alarm networks, from one or more locations remote from the fire panels
• Monitors any fire system, external inputs and configured building management system (BMS) functions
• Provides full or limited control of selected Pertronic F220-Net2 systems and BMS functions, according to the configuration of each connected F220-Net2 system
• Shows the overall status of each connected system
• Displays precise location of each addressable device
• Colour coded display of events, device status, and zone status
• Configurable image selection: Automatically display map with oldest or newest current alarm
• Automatically displays map for fault (defect) events
• Distinctive individual tone for each event type
• Monitors fire system devices even if they have not been assigned to maps
• Monitors fire system timers and counts specified events
• Identifies inactive connections to fire panels or networks
• Application and history logs store up to 500,000 events
• Monitors custom external inputs via Pertronic Ethernet Gateway (FMEGATE)
• Easily-defined clickable links and custom buttons provide intuitive, user-configurable navigation
• User can configure custom graphic icons representing standard or custom device types and states
• User-friendly zone boundary creation, map editing, and map annotation
• Imports Pertronic panel configuration text files for device data and location details
• Imports multiple panel configurations from a single F220-Net2 Network configuration file
• Simple synchronization of panel or Net2 Network configuration and graphics database
• Automatic alert if a Net2 Network or networked F220 fire panel configuration is changed
• Compatible with all Pertronic analogue addressable fire panels, and the Pertronic F220-Net2 and F100A/F120A networks

---
