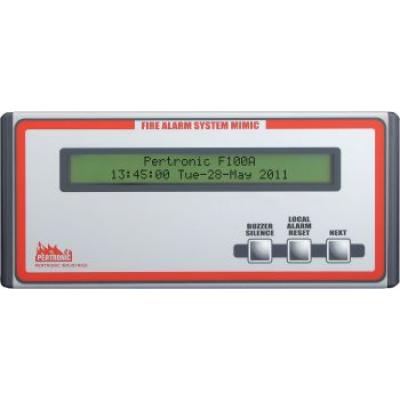

The Pertronic LCD Mini-Mimic is a remote display for Pertronic F100A and F120A analogue addressable fire alarm display panels.

The mini-mimic may be connected in one of three modes:

Full mode:

• The panel and mimic have full poll & response functions
• The mini-mimic displays all messages: ‘Alarm’, ‘Defect’ and ‘System’
• All mini-mimic buttons are functional

Slave mode:

• The panel and mimic have no poll/response functions
• No command interaction is available, except for silencing the in-built buzzer

Alarm Only mode:

• ‘Defect’ or other system messages are not displayed, providing an unambiguous display for ‘Alarm’ messages only

Features

• 2-line, 40-character, alpha-numeric LCD display
• Backlit LCD Display in ‘Alarm’ Condition
• May be configured to display all messages, or ‘Alarm’(s) only
• Local buzzer with extension buzzer output
• 'Buzzer Silence' switch - cancels the in-built buzzer
• F100AMM-3 versions only: 'Next’ switch - allows selection of queued messages for NZFS use as required in NZS 4512:2010

---
