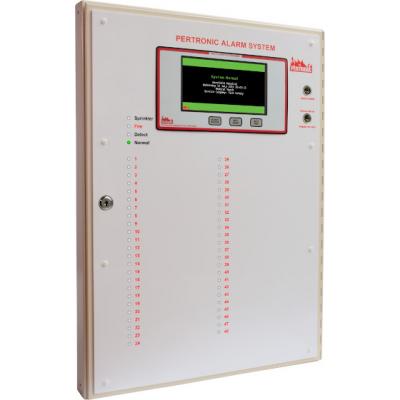

Pertronic LCD & LED Combination Mimics provide remote indication of fire panel or network system zone status. In addition, these mimics provide a remote LCD display for the analogue addressable fire panel or network.

F220 combination LCD & LED Mimics are compatible with Pertronic F220 fire panels and F220-Net2 networks.

Each combination mimic includes an F220 LCD alarm mini-mimic. The LCD display provides precise information and location details on any fire related event.

The mimic also includes one 12-way lightpipe LED display (PDB12). The 12-way lightpipe LED display provides four global indicators (Sprinkler, Fire, Defect and Normal), and eight LEDs.

Additional 8-way lightpipe display (PDB8) may be installed to provide additional indicator LEDs.

Each LCD & LED combination mimic is supplied complete with bell cut-off (BCO) and evacuation key switches.

Combination LCD & LED Mimics are available in three sizes, with front service and rear service versions of each size.

LCD & LED combination mimics are supplied with blank customisable index panels, which need to be drilled and engraved to suit project requirements.

Features

• Precise information and location details on any fire related event
• Connects to RS485 Mimic Bus of:
  • F220 fire panel
  • F220 Net2 network card (NET2CARD)
• Built-in Pertronic F220 Alarm Mini Mimic
• Supplied with blank customisable index
• Three sizes available
• Available in rear service and front service
• Fitted with bell cut-off (BCO) and evacuation key switches
