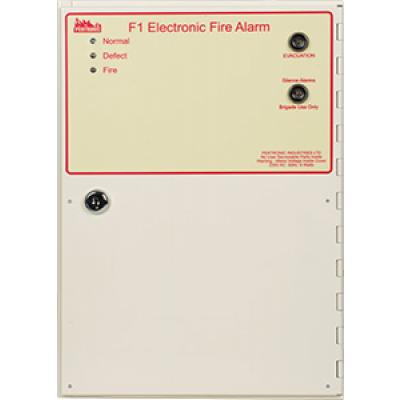

The Pertronic F1-3 is a single-zone fire alarm control panel for use with conventional detectors in applications where brigade connection is not a requirement.

The F1-3 complies with the requirements of New Zealand Standard NZS 4512:2010 for single-zone Fire Alarm systems. The F1-3 supports smoke detectors, indicating manual call-points (MCP) and indicating heat detectors with the facility to internally mount one 20 Watt evacuation amplifier.

Features

• ‘Normal’, ‘Defect’ and ‘Fire’ indication on front panel
• ‘Internal Bell Cut-Off’ and ‘External Bell Cut-Off’ (BCO)
• Alarm reset available from a front panel key-switch
• Trial evacuation key-switch
• Automatic Alarm Verification Facility (AVF) provides substantial protection against transient false alarms
• Supervised bell circuit with 10 kΩ EOL resistor
• Optional 100 Vrms line amplifier with voice evacuation message
• ‘Battery Absent’ detection circuitry
• Supervising earth leakage
• Integrated piezo Alarm and Defect sounder warning
• On-board system ‘Defect’ LED indicates source of fault
• Door Interlock
• Fire and Defect clean contact relays (C/O)
• Complies with the requirements of New Zealand Standard NZS 4512:2010

Easily configured for NZS 4512:1997 compliance

---
