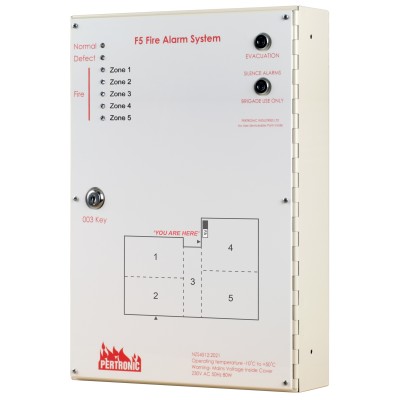

The F5 is a fire alarm control panel with five conventional detection zone circuits, which complies with NZS 4512:2021.
It supports Pertronic indicating manual call points (MCP), Pertronic indicating heat detectors and System Sensor smoke detectors.
The F5 supports one or two optional internal EA20 evacuation amplifiers, and an optional transmitter for the fire brigade.
Features:
- Optional front service or rear service formats
- One supervised bell circuit
- On-board system defect LED indicates source of fault
- Fire and defect changeover relays
- Alarm and defect buzzer
- Automatic daily battery and detection circuit test
Ordering Information
Product Code
Description
Product Code: F5FS-1EA20
Description: F5, 5cct, 12 volt Front Service Panel with 1 x EA20 Evac Amplifier
Product Code: F5FS-2EA20
Description: F5, 5cct, 12 volt Front Service Panel with 2 x EA20 Evac Amplifiers
Product Code: F5RS-1EA20
Description: F5, 5cct, 12 volt Rear Service Panel with 1 x EA20 Evac Amplifier
Product Code: F5RS-2EA20
Description: F5, 5cct, 12 volt Rear Service Panel with 2 x EA20 Evac Amplifiers
