F100 - NZS 4512:2021

Products » Panels, Networking & Utilities Software » Fire Alarm Control Panels » Analogue Addressable Panels

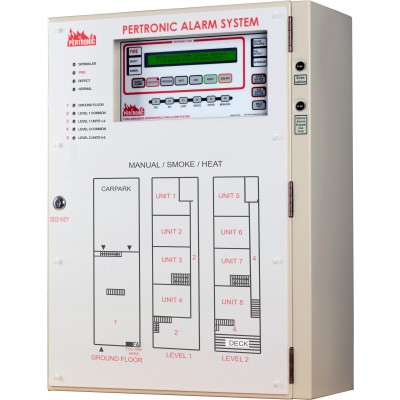

Pertronic F100 - NZS 4512:2021

F100 - NZS 4512:2021

ENQUIRE ABOUT THIS PRODUCT

The F100 fire panel and components which comply with NZS 4512:2021, and meets the requirements of the New Zealand Building Code.

The F100 analogue addressable panel is a fire alarm control panel for installations that require flexible configuration and control functions.

As part of of NZS 4512:2021 the F100 panel meets the requirements for seismic testing and earthquake loading.

Features

  • Precise Identification of Fire Location with user-definable English language text description
  • Large 2 x 40 character back-lit LCD Display
  • 24-character configurable text message per Address, Zone, Logic Block, Timer and Network input
  • Automatic 'Pre-Alarm' warnings
  • Automatic 24-Hour "System Test' of all Detectors and Battery
  • 2 to 4 Loops provides a maximum 396 detectors plus 396 modules or manual call points (MCPs)
  • Supports 127 nodes on the Pertronic network
  • Supports up to 64 outputs to the network and 64 inputs from the network
  • Loop input devices include detectors, call-points, loop responders, loop relays, and modules
  • Addressable loop relays can be configured as Sounder relays, Auxiliary relays or Door Holder relays, etc
  • User Isolation of zones and individual detectors
  • 2560 Event Historical Log
  • Configuration data may be entered through the front panel controls or using PC Configuration Utility
  • FPANZ listing number PI/130

Ordering Information

Product Code

Description

Product Code:
Description:
Product Code:
Description:
Product Code: F100-600F/5A/CR
Description: F100, 600mm, Front Service, 2 Loop, 5 Amp PSU, Cream
Product Code: F100-600R/5A/CR
Description: F100, 600mm, Rear Service, 2 Loop, 5 Amp PSU, Cream
Product Code: F100-600F/11A/CR
Description: F100, 600mm, Front Service, 2 Loop, 11 Amp PSU, Cream
Product Code: F100-600R/11A/CR
Description: F100, 600mm, Rear Service, 2 Loop, 11 Amp PSU, Cream
Product Code: F100-900F/5A/CR
Description: F100, 900mm, Front Service, 2 Loop, 5 Amp PSU, Cream
Product Code: F100-900R/5A/CR
Description: F100, 900mm, Rear Service, 2 Loop, 5 Amp PSU, Cream
Product Code: F100-900F/11A/CR
Description: F100, 900mm, Front Service, 2 Loop, 11 Amp PSU, Cream
Product Code: F100-900R/11A/CR
Description: F100, 900mm, Rear Service, 2 Loop, 11 Amp PSU, Cream
Product Code: F100-900F/22A/CR
Description: F100, 900mm, Front Service, 2 Loop, 22 Amp PSU, Cream
Product Code: F100-900R/22A/CR
Description: F100, 900mm, Rear Service, 2 Loop, 22 Amp PSU, Cream
Product Code: F100-22UF/5A/CR
Description: F100, 22U, Front Service, 2 Loop, 5 Amp PSU, Cream
Product Code: F100-22UF/11A/CR
Description: F100, 22U, Front Service, 2 Loop, 11 Amp PSU, Cream
Product Code: F100-22UF/22A/CR
Description: F100, 22U, Front Service, 2 Loop, 22 Amp PSU, Cream
Product Code: F100-28UF/5A/CR
Description: F100, 28U, Front Service, 2 Loop, 5 Amp PSU, Cream
Product Code: F100-28UF/11A/CR
Description: F100, 28U, Front Service, 2 Loop, 11 Amp PSU, Cream
Product Code: F100-28UF/22A/CR
Description: F100, 28U, Front Service, 2 Loop, 22 Amp PSU, Cream
Product Code: F100-40UF/5A/CR
Description: F100, 40U, Front Service, 2 Loop, 5 Amp PSU, Cream
Product Code: F100-40UF/11A/CR
Description: F100, 40U, Front Service, 2 Loop, 11 Amp PSU, Cream
Product Code: F100-40UF/22A/CR
Description: F100, 40U, Front Service, 2 Loop, 22 Amp PSU, Cream
Product Code: F100-DC/5A/CR
Description: F100, Double Cabinet, Without Indexes, 5 Amp PSU, Cream
Product Code: F100-DC/11A/CR
Description: F100, Double Cabinet, Without Indexes, 11 Amp PSU, Cream
Product Code: F100-DC/22A/CR
Description: F100, Double Cabinet, Without Indexes, 22 Amp PSU, Cream
Product Code: F100-DCF/5A/CR
Description: F100, Double Cabinet, Front Service, 5 Amp PSU, Cream
Product Code: F100-DCF/11A/CR
Description: F100, Double Cabinet, Front Service, 11 Amp PSU, Cream
Product Code: F100-DCF/22A/CR
Description: F100, Double Cabinet, Front Service, 22 Amp PSU, Cream
Product Code: F100-DCR/5A/CR
Description: F100, Double Cabinet, Rear Service, 5 Amp PSU, Cream
Product Code: F100-DCR/11A/CR
Description: F100, Double Cabinet, Rear Service, 11 Amp PSU, Cream
Product Code: F100-DCR/22A/CR
Description: F100, Double Cabinet, Rear Service, 22 Amp PSU, Cream
