Fire Door Holders

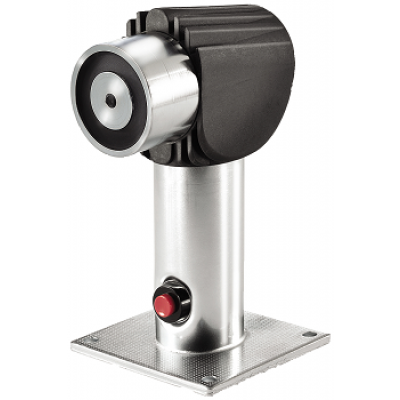

The Fire Door Holders (FDHW/F175-24V, FDHW/F325-24V) allow fire detection and alarm systems to control fire doors.
When energised, the electromagnet holds the door open by magnetically attracting a keeper on the door. In the event of a fire alarm the electromagnet is de-energised, releasing the door. Pertronic fire alarm control panels offer several methods of controlling electromagnetic door holders, including panel door holder relays, analogue addressable relay modules, and Pertronic Ancillary Peripherals. Each door holder has a manual release switch, reverse polarity protection diode, and suppression diode. It is supplied complete with an adjustable keeper.
Features
- Adjustable keeper
- Easily changed from floor mount to wall mount
- Tested according to EN1155 (Electrically powered hold-open devices)
- Manual release switch
- Reverse polarity and suppression diodes
Ordering Information
Product Code
Description
Product Code: FDHW/F175-24V
Description: Fire Door Holder Wall/Floor Mount 150/175mm 24VDC 66mA 40Kgf (GTR04800011)
Product Code: FDHW/F325-24V
Description: Fire Door Holder Wall/Floor Mount 300/325mm 24VDC 66mA 40Kgf (GTR04800014)
Product Code: FDHMTGBASE
Description: Mounting Base for FDHW/F175-24 & 325-24 83 x 93 x 20mm (GTR048000A10)
