Weatherproof Manual Call Point - Discontinued Product

Products » Historic Products » Discontinued Products: Detectors, MCPs & Modules

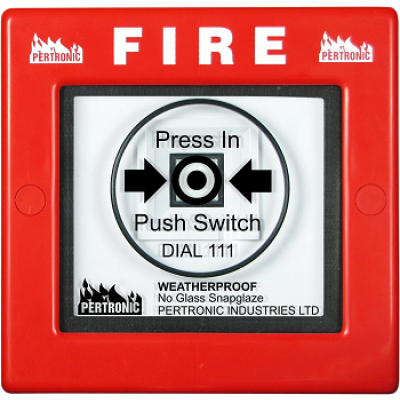

Pertronic CPPIN-3TWP

CPPIN-3TWP

ENQUIRE ABOUT THIS PRODUCT

Discontinued product.

Product Overview

Pertronic Industries’ Weatherproof Conventional Indicating MCP (CPPIN-3TWP) has been designed to provide customers with an innovative, cost effective, easy to test, solution for MCP installations that require weatherproof (IP54 Plus rating). Pertronic Industries has combined proven design techniques with the latest technology to provide a highly reliable weatherproof conventional MCP.

Features

  • Weatherproof (IP54 Plus rated) when surface mounted
  • Safe, Secure, Commissioning without the need to remove the Snapglaze element
  • Push button latching switch with inbuilt LED indicator
  • Low Profile Design
  • Electronic components protected from damage
  • MCP activated indication
  • Weatherproof ‘Snapglaze’ frangible element for improved user safety. (Must be replaced when activated to retain IP54 rating)
  • Fully complies with NZS 4512:2003 / 2010
  • Bi-directional circuit connection terminals
  • The MCP clamps the circuit voltage at 2.3 Vdc
  • Terminals accept 0.5 mm² to 1.5 mm² cables
  • Reverse polarity wiring of the MCP gives a defect warning on the Fire Alarm Panel
