Discontinued product.

The IHDBR-3 replaced by the IHDBR-V.

The IHDYR-3 replaced by the IHDYR-V.

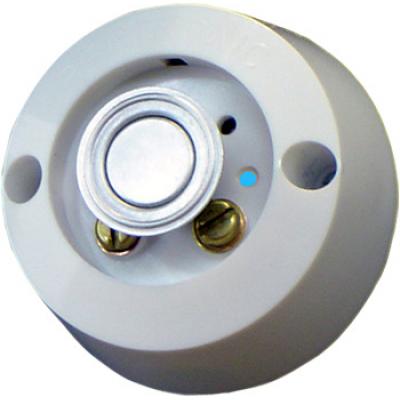

Pertronic Industries' fast response, fixed temperature, Indicating Heat Detectors with Remote LED Indicator Terminal, protect against false activation caused by vibration or other transient impulses. Fully complies with NZS 4512:2003.

Features

• Fast response, fixed temperature Fire Alarm Heat Detector
• Protected against false activation caused by vibration or other transient impulses
• Complies fully with NZS 4512:2003
• Brass Circuit terminals accept up to 1.5 mm² cable
• Remote LED terminals accept 0.75 mm² cable
• Bi-directional circuit connection terminals - either of the ‘Red’ terminals may be connected to the fire panel
• Red LED indication:
  - the LED latches ON when the thermo-mechanical sensor element activates
  - de-powering the heat detector resets the LED
• The detector clamps the circuit voltage at 2.3 V
• The Remote LED (DETREM) is compatible with and may be used with System Sensor detectors
