Conventional Indicating Heat Detectors - Discontinued Product Range
Indicating Heat Detectors
Discontinued product.
Product Overview
Pertronic Industries' fast response, fixed temperature, Indicating Heat Detectors protect against false activation caused by vibration or other transient impulses. Fully complies with NZS 4512:2003.
Features
- Fast response, fixed temperature fire alarm heat detector
- Protected against false activation caused by vibration or other transient impulses
- Complies fully with NZS 4512:2003
- Brass terminals accept up to 1.5 mm² cable
- Bi-directional circuit connection terminals - either ‘Red’ terminal may be connected to the fire panel
- Red LED indication:
- the LED latches ON when the thermo-mechanical sensor activates
- De-powering the heat detector resets the LED - The detector clamps the circuit voltage at 2.3 V
- Available in a variety of configurations:
- Standard
- Encapsulated
- Remote LED Indicator
- Remote Kit - For non-2 Wire panels, reversal of the IHD causes a High Defect – the M-Level reached is dependent upon the number of detectors on the circuit and the number reversed
| Product Code | Description | Replaced By |

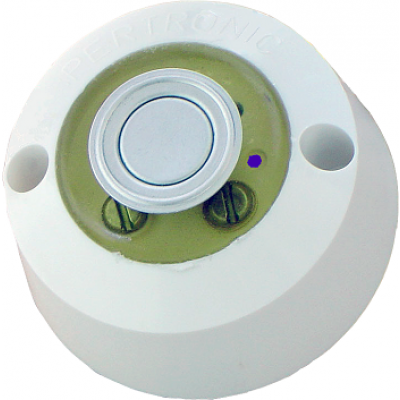

| IHDB-3 | Indicating Heat Detector, Blue, 57 °C | IHDB-V |
| IHDBE-3 | Encapsulated Indicating Heat Detector, Blue, 57 °C | IHDBE-V |
| IHDY-3 | Indicating Heat Detector, Yellow, 77 °C | IHDY-V |
| IHDYE-3 | Encapsulated Indicating Heat Detector, Yellow, 77 °C | IHDYR-V |
