Power Distribution Board
Power Dist Board
Discontinued product.
The Power Distribution Boards (F120PDB & PDB-GF) are fuse panels for distributing power from ELV battery power supply systems.
Each board has a parallel pair of input fuses feeding a common supply bus. The bus feeds seven separately-fused output circuits.

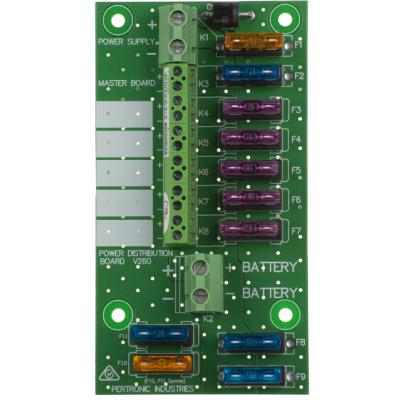

The F120PDB has blade fuses (shown in the photo).
The PDB-GF has 5 mm x 20 mm glass fuses.
Features
- Fuse board for power distribution in 12 Vdc, 24 Vdc, and other ELV power systems
- Reverse polarity protection for connected systems
- Twin parallel battery input fuses
- Seven separately-fused output circuits
- Maximum total system (input) current: 30 Amps
- Maximum system voltage: 60 Volts dc
Ordering Information
Product Code
Description
Availability
Product Code: F120PDB
Description: F120 Power Distribution Board V260 (MK2, Blade Fuses)
Availability: Discontinued
Product Code: PDB-GF
Description: Power Distribution Board, 5mm x 20mm Glass Fuses
Availability: Discontinued
