Discontinued product.

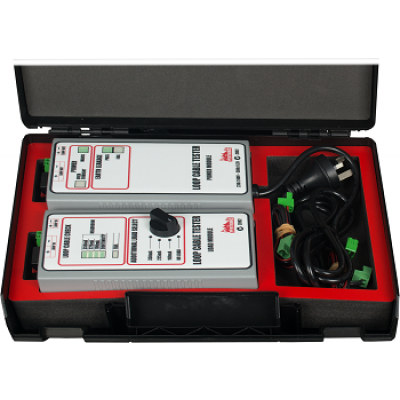

The Pertronic Loop Cable Tester is a test set for loop wiring in analogue addressable fire alarm systems.

It is designed for validating new loop cabling prior to connecting a fire alarm control panel, and for testing and fault-finding loops on existing systems.

Features

• Separate power and load modules facilitate testing:
  • A complete loop, with both modules at the same location
  • Part of a loop, or a spur, with the modules at separate locations
• Each module has a pair of clamps for bare wire loop connections, as well as a two-pin connector for plug-in loop connection
• Power Module
  • Mains LED (Green)
  • Over-Current LED (Red)
  • Earth leakage pass & fail LEDs (Green & Red)
  • Mains power lead
• Load Module
  • Four-position load select rotary switch
  • Continuity LED (Green)
  • Three-level loop check LEDs (Green): 100 mA, 225 mA, 350 mA
  • Loop check fail LED (Red)

---
