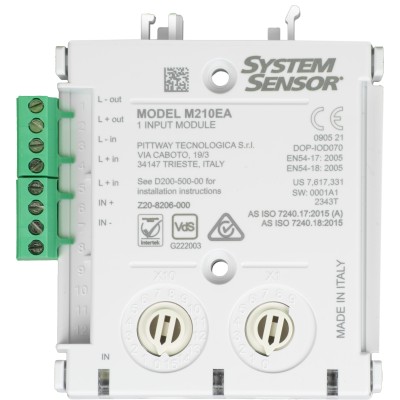

The Intelligent Addressable Single Channel Input Module (M210EA) monitors one set of switch or relay contacts.

The M210EA has a single tri-colour green/red/yellow LED, which can be set by panel command to pulse green each time the module is polled. The fire panel can be configured to switch the red indicator on continuously in the event of an alarm. The indicator blinks yellow if the module detects an open-circuit on the input circuit.

This module features automatic fault supervision and a built-in isolator on the intelligent addressable circuit. The isolator may be bypassed. Please refer to the installation instructions for details.

Screwdriver operated rotary switches allow the module address to be configured from either the front or one side of the module.

Two mounting holes and a pair of DIN rail clips allow the module to be installed in any type of enclosure, including a purpose-built surface-mount box (M200E-SMB). The indicator LEDs and address switches are accessible and visible in both DIN-rail and surface mount installations.

Features:

• Individually addressable by the fire panel
• Input circuit supervised for open-circuit faults
• Tri-colour indicator LED visible from front and one side
• Automatic detection of short-circuits on IA circuit
• IA circuit short-circuit isolator
• Optional isolator bypass
• Screwdriver operated rotary address switches, accessible from front and one side
• Clips for top hat 35 mm DIN rail
• Two mounting holes
• Compatible with Pertronic F220, F100A and F120A intelligent addressable fire panels
• Up to 99 module addresses per IA circuit (F220, F100A, F120A)
• Uses one address on the intelligent addressable circuit
• Supplied complete with one 47 kΩ end of line resistor
• Complies with AS ISO 7240.17:2015 and AS ISO 7240:18:2015
• FPANZ listing PI/668
• Direct replacement for M210E in existing Pertronic systems

---
