Pertronic Isolate Timer Module

Isolate Timer Module

ENQUIRE ABOUT THIS PRODUCT

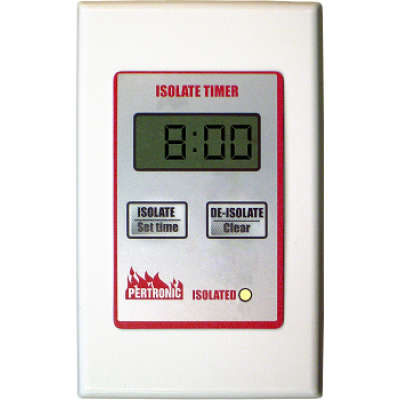

The Pertronic Isolate Timer Module (ITM) allows a zone to be isolated for a user-programmed period, after which the zone is automatically re-enabled.

The isolate timer is designed to prevent unwanted alarms during maintenance or other activities that may trigger an alarm activation.

The isolate timer modules are available:

  • ITM: Maximum isolate period, 8 hours
  • ITM-3HR: Maximum isolate period, 3 hours

Note: The ITM is also available with 4 hours or 18 hours maximum isolate period (please contact Pertronic technical support for details).

Features

  • Provides the ability to isolate a zone for a programmable period of time
  • Provides visual confirmation that the zone is isolated
  • Displays the current zone status: Normal, Isolate, or Alarm
  • Provides visual and audible warning that the isolate period is about to expire
  • Analogue Mode: Connects to Pertronic analogue addressable fire alarm control panels via the AA loop
  • Stand-Alone mode: Connects to conventional fire panels or VESDA aspirated detectors
  • May be mounted in standard single-gang flush or surface-mount electrical fittings
  • Supplied with a protective plastic cover for use during building construction

Ordering Information

Product Code

Description

Product Code: ITM
Description: AA Isolate Timer Module
Product Code: ITM-3HR
Description: Isolate Timer Module, Max 3 Hour Isolation
