Conventional C.O.+ Heat Detector

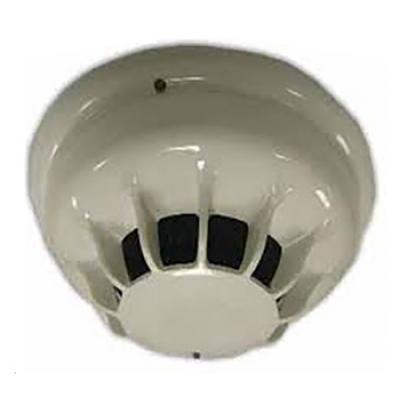

PC614 Detector
The Carbon Monoxide (CO) and Heat Detector (PC614) uses both CO and heat sensors. This combination enables an increase in the sensitivity of the CO sensor during a rapid temperature rise. This detector is suitable for detecting both slow-smoldering and fast-flaming fires.
The heat sensor also acts as an independent rate-of-temperature-rise detector with a 60 °C static threshold, as defined in AS 7240.5-2004 Class A1R.
This detector is well-suited to applications where heat detection alone is insufficient, but a smoke detector would be vulnerable to nuisance alarms.
Features and Specifications
- Supply Voltage: 10 to 33 Vdc
- Quiescent Current: 70 μA (typ.)
- Ambient Temperature: 0 to +50°C
- Rel. Humidity: 15 to 90%
- Alarm Indicator: Red LED
- Dimensions: 54 H x 127 dia (mm)
Ordering Information
Product Code
Description
Product Code: PC614
Description: 614CH Conventional C.O. + Heat Fire Detector
Product Code: PC614B
Description: Base for 614CH C.O.+ Heat Detector
