Remote Heat Detector Kit
IHD Kit
The Pertronic Indicating Thermodisc Heat Detector Kit provides heat detection in areas with harsh environmental conditions such as high ambient temperature.

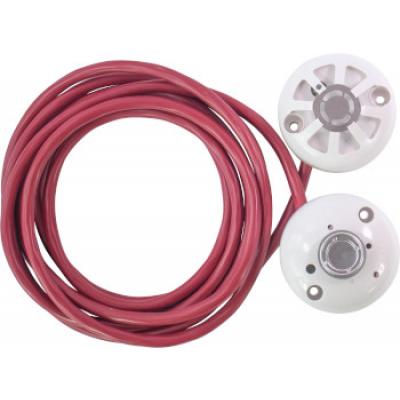

The detector consists of a Heat Sensor Unit, which is installed in the harsh environment, and an Indicator Unit, which must be installed away from the harsh environment. The Heat Sensor Unit contains a bi-metallic heat sensor and is rated for normal operation at temperatures up to 130 °C. The Indicator Unit is electrically identical to our Thermistor Heat Detectors.
The kit includes three metres of high temperature cable, pre-terminated to the Heat Sensor and Indicator Units.
The Pertronic Indicating Thermodisc Heat Detector Kit is available in two versions:
- IHDBLKK-125C (Black), with 125 °C fixed alarm threshold
- IHDBK-57C (Blue), with 57 °C fixed alarm threshold
Features
- Red LED indication on Indicator Unit latches ON when an alarm condition is detected (De-powering the detector resets the red LED indication)
- Supplied complete with 3 metres of heat resistant cable
- Indicator Unit detection circuit terminals accept up to 1.5 mm² cable
- Yellow LED indicates reverse polarity connection
- Bi-directional Line In + Line Out terminals on Indicator Unit. Either red terminal may be connected to the fire panel.
- Conformally-coated PCBs
- Independently tested and certified compliant with NZS 4512:2010
Ordering Information
Product Code
Description
Product Code: IHDBK-57C
Description: Indicating Thermodisc Heat Detector Kit Blue Code 57C
Product Code: IHDBLKK-125C
Description: Indicating Thermodisc Heat Detector Kit Black Code 125C
