VESDA Display Modules
VESDA Display Modules

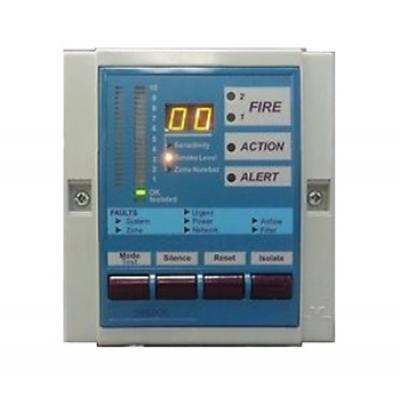

The VESDA display module provides real-time indication of the status of a VESDA detector. The display has a 20-segment vertical bar graph display, a 2-digit numeric display, an audible sounder, and alarm and fault indicators. The display also has four push-button switches to control the detector and the display mode.
The display module can be mounted in a detector unit, a remote mounting box or a 19-inch rack. Several displays can be configured to display information from a single detector in multiple locations.
Features
-
Provides immediate status reporting for a single ASD zone
-
Allows zone control of assigned VESDA detector
-
High-intensity alarm LEDs
-
Remote relay option
-
20-Segment vertical bar-graph display
-
Alarm threshold indicators
-
Built-In sounder for audible warning
-
Comprehensive fault reporting
-
Multi-Mode numeric display (Defaults to smoke obscuration)
-
Recessed mounting option
Ordering Information
Product Code
Description
Product Code: VRT-200
Description: VLP Remote Box with Display 7 Relays
Product Code: VRT-400
Description: VLS Remote Box with Display 7 Relays
Product Code: VRT-600
Description: VLP Remote Box with Display no Relays
Product Code: VRT-700
Description: VLS Remote Box with Display no Relays
Product Code: VRT-800
Description: VLS Remote Box with Display 12 Relays
Product Code: VRT-900
Description: VLS Remote Box with Blank plate 12 Relays
